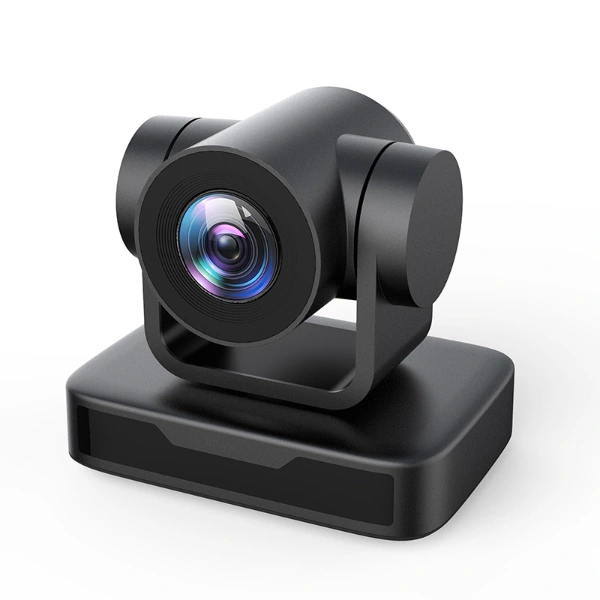

מצלמה רובוטית Minrray UV515A – 10 zoom – PTZ
מצלמת מינריי רובוטית עם חיבור USB למחשב מצלמת PTZ מסדרת UV515 Full HD מציעה פונקציות מושלמות, ביצועים מעולים וממשקים עשירים. התכונות כוללות אלגוריתמים מתקדמים של עיבוד ISP כדי לספק תמונות חיות עם תחושת עומק חזקה, רזולוציה גבוהה ועיבוד צבע פנטסטי.
2,490.00 ₪
אפשרויות איסוף ומשלוח:
◉ איסוף בחנות ראש העין - נא לתאם הגעה - 0 ש"ח
◉ משלוח לנק' איסוף - 3-7 ימי עסקים - 25 ש"ח
◉ משלוח לבית הלקוח - 3-7 ימי עסקים - 50 ש"ח
KEY FEATURES
- Full HD Image
UV515 employs 1/2.9 inch high quality CMOS sensor. Resolution is up to 1920×1080 with frame rate up to 30fps.
- Multiple Optical Zoom: 3X and 10X optical zoom lens for selection.
- Leading Auto Focus Technology
Advanced and leading algorithm enables the camera auto focus fast and accurately.
- Low Noise and High SNR
Low noise CMOS ensures super high SNR image. The advanced 2D/3D noise reduction technology reduces the noise while ensuring high image clarity.
- Multiple Control Protocols
Support VISCA, PELCO-D, PELCO-P protocols; Support automatic identification protocols.
- Control Interface
RS485, RS232 in & out, support cascade connection.
- Extremely Quiet PTZ
- Adopting step driving motor mechanism and motor drive controller with high precision is to ensure PTZ works smoothly with low speed and without noise.
- Low-power Sleep Function
Support low-power sleep/wake up, the consumption is lower than 400mW under sleep mode
- Multiple Preset
Up to 255 presets (10 presets for IR remote control)
- Multiple Applications
Online-education, Lecture Capture, Broadcasting, Video conferencing, Tele-medicine, Unified Communication, Emergency command and control systems, etc.
| Model No. | UV515-03 | UV515-10 | |
| Camera Parameter | |||
| Image Sensor | 1/2.9 Inch High Quality CMOS Sensor | ||
| Effective Pixels | 2.07MP, 16:9 | ||
| Video Format | 1920×1080P@30 fps/25fps; 1280×720P@30fps/25fps; 1024×576P@30fps/25fps;
960×540P@30fps/25fps; 800×448P@30fps/25fps; 640×360P@30fps/25fps; 320×176P@30fps/25fps |
||
| Optical Lens | 3X Optical Zoom
f＝3.35mm-10.05mm |
10X Optical Zoom
f＝4.34mm-41.66mm |
|
| View Angle | 30°～85° | 8.8°～ 68.8° | |
| Iris | F1.7-3.0 | F1.85 – F2.43 | |
| Digital Zoom | 10X | ||
| Low Illumination | 0.5Lux (F1.8, AGC ON) | ||
| DNR | 2D﹠3DDNR | ||
| White Balance | Auto / Manual/ One Push//3000K/3500K/4000K/4500K/5000K/5500K/6000K/6500K/7000K | ||
| Focus | Auto / Manual/ One Push | ||
| Electronic Shutter | Auto / Manual | ||
| BLC | On/Off | ||
| WDR | OFF/ Dynamic Level Adjustment | ||
| Video Adjustment | Brightness, Color, Saturation, Contrast, Sharpness, B/W mode, Gamma curve | ||
| SNR | >50dB | ||
| Interface and Protocol | |||
| Video Output | USB2.0. Type A | ||
| Video Compression | H.265, H.264, MJPG | ||

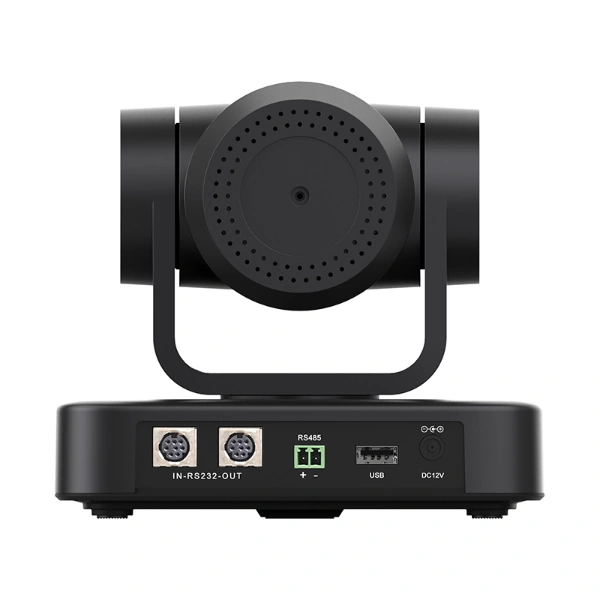

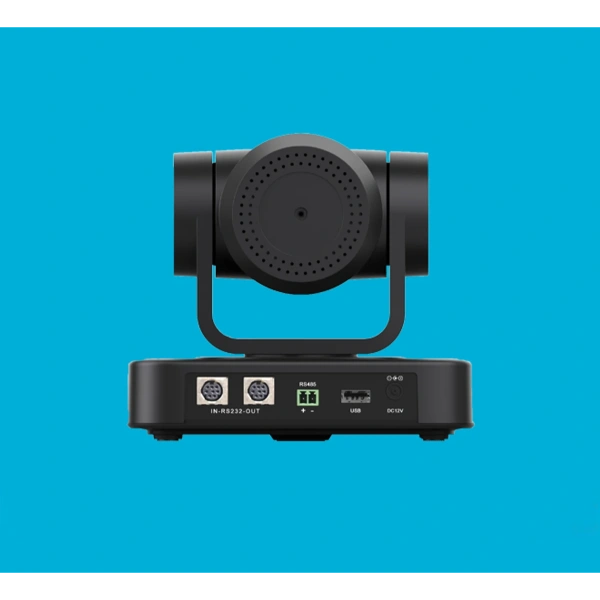

| Control Port | RS232 in & out, RS485 | ||
| Control Protocol | VISCA/Pelco-D/Pelco-P | ||
| Power Supply | HEC3800 Outlet (DC12V) | ||
| USB characteristics | |||
| Support operating system | Windows 7,Windows8, Windows10, Mac osx ,Linux | ||
| Video Compression | H.265, H.264, MJPG | ||
| USB communication protocol | UVC | ||
| PTZ Parameter | |||
| Pan/Tile Rotation | -170°~+170°, -30°~+90° | ||
| Pan/Tile Controller Speed | 0.1~60°/Second, 0.1~30°/Second | ||
| Preset Speed | Pan:60°/Second, Tilt: 30°/Second | ||
| Preset Numbers | 255 Presets (10 presets on IR Remote) | ||
| Other Parameter | |||
| Working Voltage | 12V | ||
| Working current | 0.25A(max) | ||
| Power Consumption | 2.5W(max) | ||
| Storage Temperature | -10℃～+60℃, 20%～95% | ||
| Working Temperature | -10℃～+50℃, 20%～80% | ||
| Dimension(W*H*D) | 156.8mm×112.6mm×139.5mm | ||
| Weight | 1KG | ||
| Usage | Indoor Only | ||
| Package | Power Supply, Remote Controller, User Manual, USB2.0 Cable | ||
| Accessories Optional | Mounting bracket (Extra Cost) | ||
