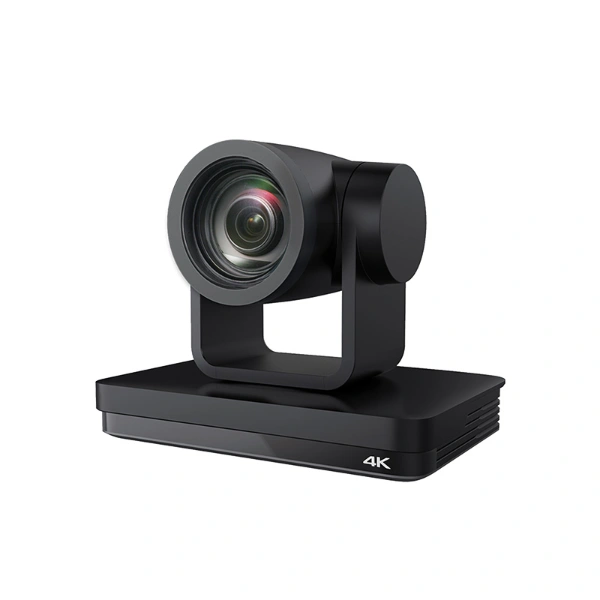

Ultra HD 4K PTZ Camera-UV420

The UV420 Ultra HD 4K camera offers perfect functions, superior performance and rich interfaces. The features include advanced ISP processing algorithms to provide vivid images with a strong sense of depth, high resolution, and fantastic color rendition. It supports for H.265/H.264 coding, making the image smooth and clear even in low-bandwidth.

l  4K Ultra HD: 1/2.8 inch high quality 4K SONY CMOS sensor; 8.50 megapixel, resolution is up to 4K (3840×2160) at 30 FPS.

l  Optical Zoom: 12X optical zoom with 70°viewing angle.

l  Advanced Auto Focus Technology: Advanced auto focus technology allows the camera to move fast, accurately, and stably.

l  Low Noise and High SNR: Low noise CMOS provides the high SNR. The use of leading 2D 3D noise reduction technology further reduce the noise while not comprising the clarity of image.

l  Multiple Connections: It supports for HDMI, SDI, USB3.0, wired LAN and PoE. USB3.0 supports dual stream and SDI supports 100 meters transmission at 1080P60.

l  Multiple Audio Compression Formats: It supports for YUY2、MJPEG、H.264、H.265、NV12 video coding formats. And the resolution of 3840X2160 at 30FPS is available under MJPEG、H.264、H.265 formats. Audio compression formats: AAC、MP3、G.711A

l  Audio Input Jack: It supports audio coding in AAC、MP3、G.711A. And the sampling rate of 16000、32000、44100、48000 are available under AAC, MPS formats.

l  Built-in Gravity Sensor: It is built in gravity sensor, supports for PTZ auto flip, easier for engineer to set up.

l  Multiple Network Protocols: It supports for protocols of ONVIF、GB/T28181、RTSP、RTMP、VISCA OVER IP、IP VISCA、RTMPS、SRT, RTMP Push Mode, RTP multi-brodcasting mode, making it easy to link with stream media server(Wowza、FMS)

l  Control Jack: RS422 compatible with RS485, RS232-IN, RS232-OUT, RS232 jack is capable of cascading.

l  Multiple Control Protocols: It supports for control protocols of VISCA, PELCO-D, PELCO-P, and able to automatically identify the protocols.

l  Super Quiet PTZ Movement: Adopting step driving motor mechanism and motor drive controller with high precision is to ensure PTZ works smoothly with low speed and without noise.

l  Low-power Sleep Mode: It supports for low-power sleep/wake up. The power consumption in sleep mode is less than 400mW.

l  Multiple Presets: It supports for 255 presets(10 presets called via remote control)

l  IR & Wireless Remote Control: IR and Wireless Remote Control are available for options.

l  AI Human Detection: Boasting high speed processor and advanced image processing and analytic algorithm, the camera supports for real-time tracking and zone-tracking.

l  Wide Application: Applied in remote teaching, conference system, online training, and tele-medicine.

Technical Specification:
